SWAROVSKI EL RANGE

THE PEAK OF PERFECTION

The EL Range offers the best combination of long-range optics and ergonomic design. The master craftsmanship underlying these binoculars is proven by razor-sharp images combined with precise range and angle measurement, as well as their perfectly balanced weight, allowing you to hold them steady. Other benefits of the new EL Range are the FieldPro package, which includes a new strap connector making it extremely simple to switch quickly and flexibly between strap and accessories and the new, distinctive measurement button.

SWAROaim SWARObright

TOTALLY STATE-OF-THE-ART OPTICS

The sophisticated EL Range binoculars feature an integrated range and angle finder that provides a large field of view and produces impressive transmission values in both barrels of the binoculars.

ERGONOMIC BALANCE

Taking accurate measurements at long distances requires the utmost steadiness. For this reason the EL Range binoculars are not only light, but also equipped with ergonomically arranged operating features, such as the improved measurement button. This will even allow you to measure distances reliably with just one hand.

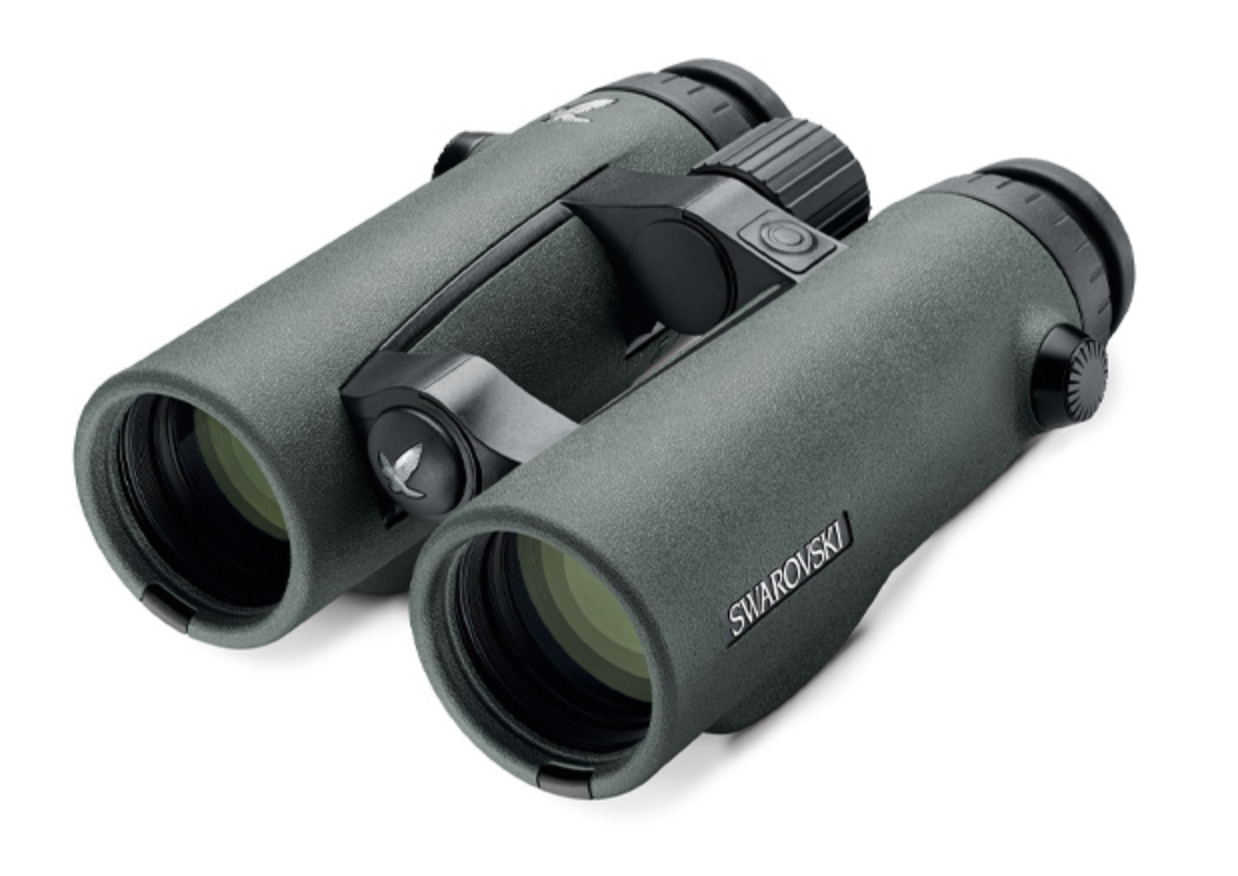

EL Range 8x42 W B

Accuracy can also mean versatility. The EL Range 8x42 binoculars are ideal for numerous viewing opportunities right up to twilight. Their expansive field of view and large exit pupil ensure optimum comfort during observation. Thanks to the new FieldPro package, the EL Range 8x42 will also impress with their enhanced strap connector, integrated objective lens and eyepiece covers, as well as the new, distinctive measurement button for even more precise operation.

Included

Comfort carrying strap pro with pockets for the replacement battery, made of new, improved material to make it more comfortable to carry, a field bag pro, eyepiece cover, and objective lens cover

Technical Data

Magnification: 8x

Effective objective lens diameter (mm): 42

Exit pupil diameter (mm): 5.3

Exit pupil distance (eye relief) (mm): 19.2

Field of view (ft/1000 yds / m/1000 m): 411 / 137

Field of view (degrees): 7.8

Field of view for eyeglass wearers (degrees): 7.8

Field of view, apparent (degrees): 61

Shortest focusing distance (ft / m): 16.4 / 5

Dioptric compensation (dpt): -7/+5

Light transmission (%): 91

Pupil distance (in / mm): 2.2 - 2.9 / 56 - 74

Twilight factor acc. to DIN 58388: 18.3

Length approx. (in / mm)*: 6.5 / 166

Width approx. (in / mm)**: 5.4 / 137

Height approx. (in / mm)**: 3.2 / 81

Weight approx. without batteries (oz/g): 31.6 / 895

Functional temperature (mechanically / electronically): -13 °F to +131 °F (-25 °C / +55 °C) / +14 °F to +131 °F (-10 °C / +55 °C)

* Value with eyecups twisted in

** Dimensions at a pupil distance of 2.5 in / 64 mm

Measuring

Measuring range (yds/m): 33 - 1500 / 30 - 1375

Measuring accuracy (yds/m): ± 1 / 1

Measuring time (sec): ≤ 1

Angular measurement (degrees): ± 90

Laser: Class 1 EN/FDA

Units: Yard / Meter

Battery: CR2

Life cycle: 1,000 measurements

2019 MSRP $3,632
