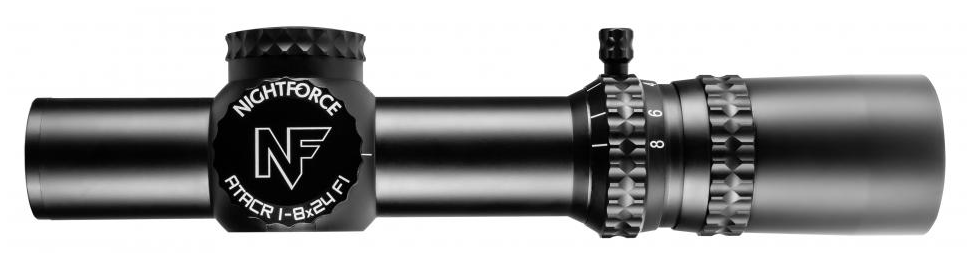

The ATACR™ 1-8x24 riflescope is designed and built to be the ultimate low-power variable riflescope. It includes pristine ED glass, bright daylight illumination, an intelligent reticle, very low-profile adjustments and bomb-proof reliability, with a field of view at 1x equivalent to open sights…but vastly more precise.

It measures just over 10 inches in length and weighs 21 ounces, with a streamlined profile. The daylight visible, center red dot allows for rapid engagements like a red-dot sight.

Unlike a red-dot, however, the 1-8x provides up to 8x zoom to help locate, identify and engage targets at the maximum effective range of most rifles. The intelligent FC-DM first focal plane reticle provides precise hold and hold-off points. The low-profile turrets are capped to prevent accidental adjustment and offer true .1 Mil-Radian adjustment. To aid in fast magnification adjustments, an integrated Power Throw Lever (PTL) is included.

SPECIFICATIONS - ATACR 1-8X42 F1

Focal Plane - First
Objective outer diameter - 24mm
Exit pupil diameter - 1x: 11.26mm - 8x: 3.19mm
Field of view @100 yards/100 meters - 1x: 96.1ft - 8x: 13.1ft
1x: 29.3m, 8x: 4.0 m
Eye relief - 95 mm/3.74 in
Internal adjustment range (MOA/Mil) - e: 30 Mil w: 30 Mil
Click value.1 Mil-rad
Parallax adjustment - Fixed 125 yd
Tube diameter - 34mm/1.34in
Eyepiece outer diameter - 46 mm
Overall length (inches/mm) - 10.06 in/255.5 mm
Weight (ounces/grams) - 21 oz/595 g
Mounting length (inches/mm) - 5.67 in/144 mm
PTL (Power Throw Lever) - Standard
Reticles available - FC-DM
Daylight visible, adjustable
Elevation Feature - Capped, low-profile
