The NX8 1-8x24 F1 is a class leading, compact and lightweight riflescope optimized for short to mid-range shooting. At only 8.75“ in length and 17 ounces, this riflescope adds minimal size and weight but delivers superior optics and trusted Nightforce performance to any rifle.

With the daylight visible center red dot users can engage targets with speed like a red-dot sight, but as targets increase in distance the intelligent FC-Mil and FC-MOA first focal plane reticles provide precise hold points. For those preferring to dial for long shots, the ZeroStop elevation adjustment allows for a rapid and positive return to zero. Adjustments are a true .2 Mil-Radian or .50 MOA. To aid in fast magnification adjustments, a built-in Power Throw Lever (PTL) is included.

SPECIFICATIONS - NX8 1-8X24 F1
Focal Plane - First
Magnification Range - 1-8x
Objective lens diameter - 24 mm
Tube diameter - 30 mm
Internal adjustment range (MOA/Mil) - e: 100 MOA; w: 100 MOA
e: 30 Mil; w: 30
MilClick value - .50 MOA or .20 Mil
Calibrated Ranging Power - N/A
Parallax adjustment - Fixed at 125m
Exit pupil diameter - 1x: 7.9 mm; 8x: 3.0 mm
Eye relief - 95.3 mm / 3.75 in
Field of view @100 yards/100 meters - 1x: 106.0 ft; 8x: 13.2 ft
Objective outer diameter - 1.18 in
Eyepiece outer diameter - 1.57 in
Overall length (inches/mm) - 8.75 in
Weight (ounces/grams) - 17 oz
Mounting length (inches/mm) - 5.67 in
Front/Rear Mounting Length - Fr 1.7 in / Rr 2.3 in
PTL (Power Throw Lever)Standard

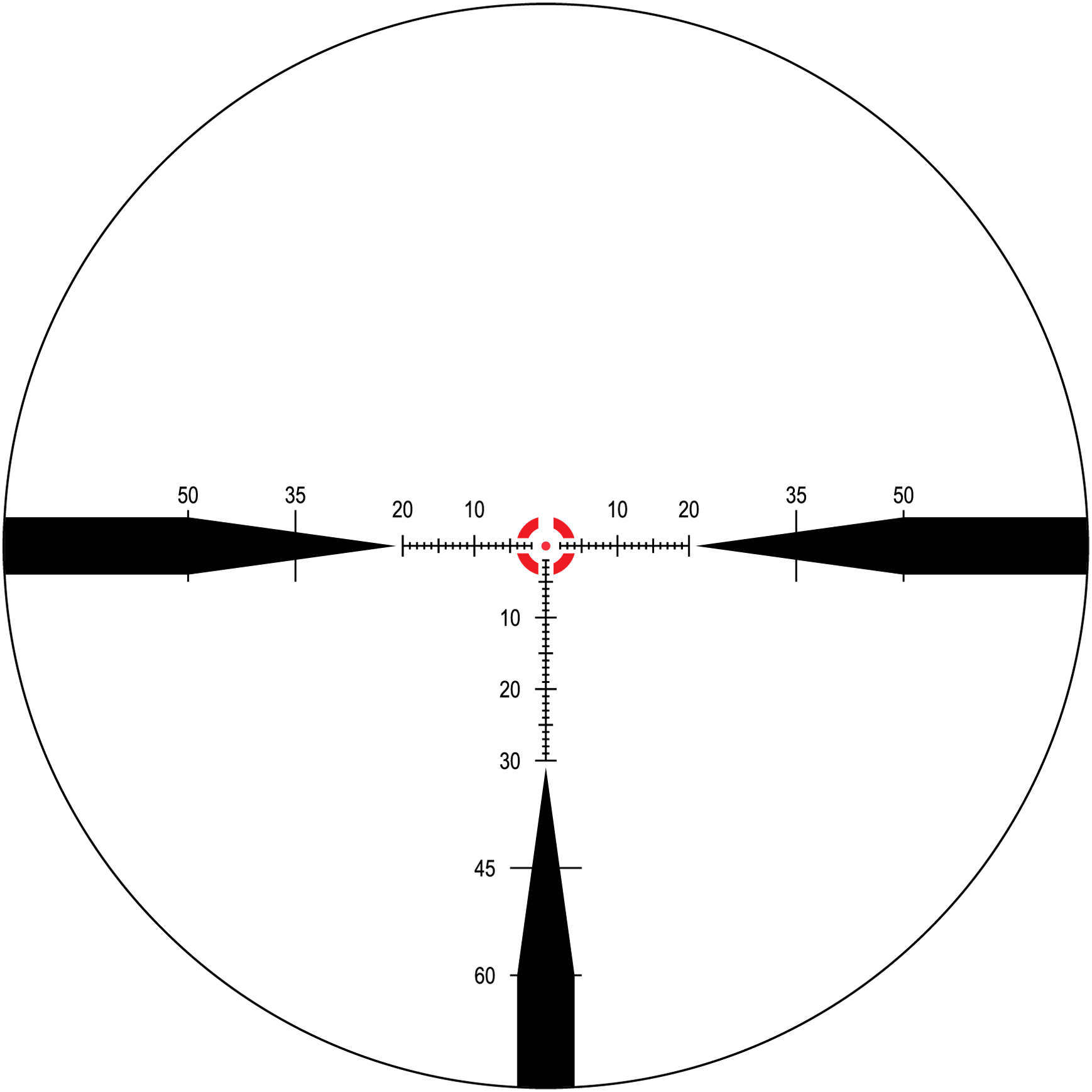

Reticles available - FC-MOA, FC-Mil
Illumination - Daylight visible, adjustable
Elevation Feature - ZeroStop™

Downloads

Reticle Information
Product Spec Sheet

These scopes were announced from Nightforce on 12/14/17.  We have them on order and are being told that they will ship in February.  You can place your preorder here and we will ship our preorders as soon as they arrive from Nightforce.
