NOTES ON CROSS COMPATIBILITY

SiCo Omega fits (Ti and Steel)
– SilencerCo Omega
– SilencerCo Hybrid
– SilencerCo Harvester BIG BORE
– Dead Air Nomad
– RMS2 Hopaii/Shadow
– Any suppressor with 1-3/8 x 24 rear cap threads

SiCo Harvester fits
– SilencerCo Harvester 30
– SilencerCo Omega 9k

5/8-24 Direct Thread fits
– Any standard 5/8-24 direct thread suppressor like TBAC 30P1
– Use to convert any brake attach suppressor we do not make mounts for (this will add quite a bit of length, and is not ideal, but will work)

Thunder Beast BA
– TBAC 338 Ultra
– TBAC 338BA
– TBAC 30BA

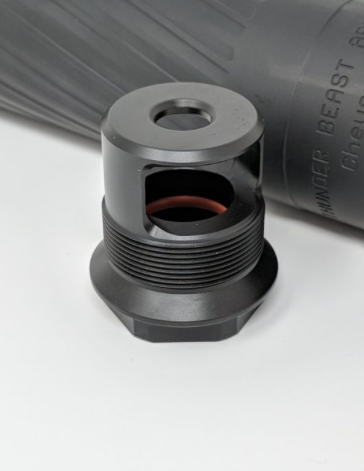

Thunder Beast CB
– TBAC Ultra 5, 7, 9 in 6.5 or 30
– TBAC CB series

Suppressor Mounts

– Suppressor mount allows you to use your compatible suppressors with the Hellfire Self Timing Brake system by simply removing your Hellfire Brake and installing one of these mounts

– Made from aerospace grade 17-4PH Stainless Steel, Titanium mounts are made from US made 6AL4V

– Mounts are Black Nitrided to prevent galling. Titanium mounts are DLC coated.

– Made to meet manufacturers specifications, but these adapters are not associated with their respective manufacturers in any way.

– If there is a suppressor you would like to see a mount made for, email sales@area419.com and Area 419 will consider them based on demand.

– Generation 2 mounts no longer use a collar like the muzzle brake.  These mounts get torqued into your suppressor and therefore allow your suppressor to become a direct thread onto the Hellfire Universal Adapter (left hand).  (SiCo Omega, Saker, and Harvester started with the Gen 2 design)

• Allows the mount to be much more compact, and adds very little to the overall length of the system

• Area 419 recommends blue Loc-tite on the external threads of the mount to hold it semi-permanently in the suppressor. Since you will be threading the can on in a left hand direction now, if it is not torqued properly into the suppressor, you may unscrew it when attaching to the barrel. No fear though, its impossible to get the two stuck together in this situation due to the opposing thread directions, simply turn it the other way and they will separate, then start over.

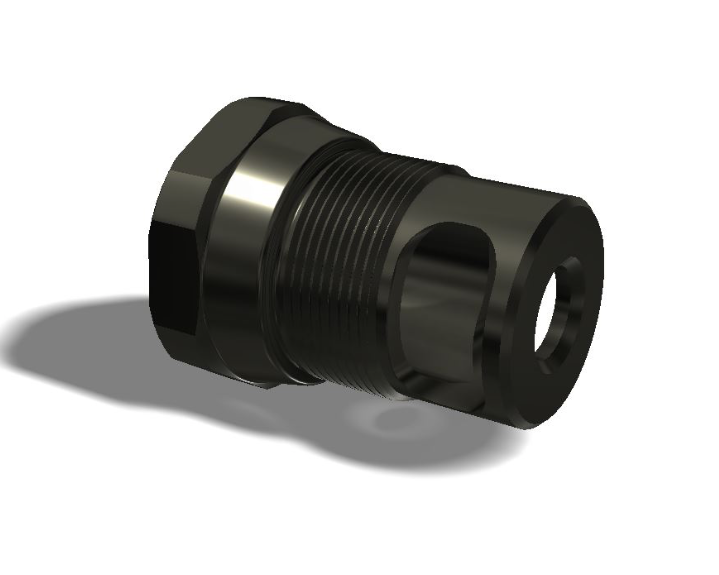

• Some mounts will not be immediately available in the Gen 2 design due to very low demand. (SAS TOMB, CRUX)

• Gen 2 Mounts come with a HELLFIRE Wrench

NOTE: The use of Lemishine (or any citric-acid cleaner) or CLR to clean your brake will likely discolor the black nitride, and will void the lifetime warranty of your product. Don’t do this. Seriously. It’ll turn pink.

Universal Adapter

– Universal adapter system allows TOOL FREE use of multiple muzzle attachments

– Universal adapter uses a taper surface similar to a machine tool spindle for the absolute best alignment with the muzzle threads.

– Universal adapter is made in one operation on a state of the art CNC lathe, threads are 100% concentric to taper surface

– All Universal Adapters will come Black Nitrided to prevent galling.

– Available in 5/8-24 and 1/2-28.  Both are class 3 fit.
