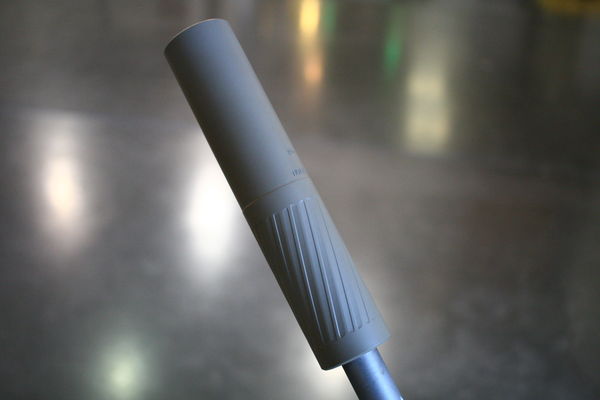

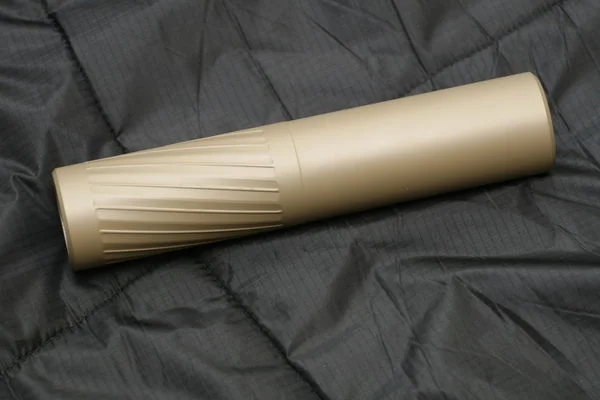

The ULTRA 7 is Thunder Beast's highly efficient compact .30 caliber precision rifle suppressor. It is best for applications where a compact form factor is important but excellent suppression is still required.

The ULTRA 7 will suppress a typical .308 bolt-action rifle down to approx 134-136 dB1. The ULTRA 7 weighs just 9.7 ounces.

Compared to the prior 30P-1/30CB9 series, the ULTRA series is 25-30% lighter, 4-5 dB quieter, and twice as strong. The ULTRA series holds the same precision and repeatability as the 30P-1/30CB series.

The .30 caliber ULTRA 7 is available in either the Compact Brake (CB) "Thread Over Muzzle Brake" (TOMB) mount or in a direct thread mount. The CB mount and direct thread mount have equivalent accuracy and repeatability.

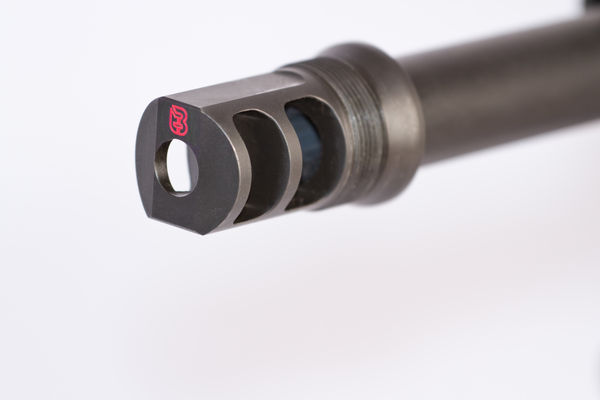

With the CB mount, the suppressor mates to a conical shoulder on the brake and locks up rock solid and extremely tight. In direct thread configuration, the ULTRA suppressors use a heat-treated 17-4 thread insert and initial blast shield. The .30 caliber ULTRA series suppressors also have the flexibility to be changed from direct thread to CB mount and vice versa via a simple factory service operation, in case your needs change. This is accomplished by removing or replacing the default brake from the direct thread version.

The ULTRA series is constructed of titanium with a fully-welded grade 5 baffle core. This material and construction provide a great strength to weight ratio. It can take whatever your precision rifle can dish out.

The ULTRA baffle stack was completely redesigned, but retains the principles that made the 30P-1 stack such a great precision and long-range suppressor. Thunder Beast Arms Corp suppressors have racked up impressive results at long-range field shooting events nationwide, and have been the most popular suppressor used in the Precision Rifle Series (top 50 competitors) for three years running.

Specifications

Caliber:  .30 caliber, up to .300 RUM

Material:  Titanium

Length:  7 inches

Diameter:  1.5 inches

Mounts :  CB series brake or flash hider, and Direct Thread

Weight:  9.7 ounces (CB mount)
                11.5 ounces (direct thread)

Brake Threads1/2-28*, 5/8-24, 9/16-24, 3/4-24, 3/4-28, M18x1.0, M18x1.5
* Note: The 1/2-28 brake has part number 223CB-BRK:1/2-28 and has a .223 caliber aperture!

CB Versions will include a CB Brake with your choice of thread pitch.
irect Thread Versions come in 5/8x24 unless something different is requested.

Finish:  Black CeraKote; OD Green or FDE available

Brake Material:  Heat-treated 17-4 stainless

Brake Finish:  Ionbond DLC

Use:  Precision/Long-range rifle, bolt or semi-auto

SPECIAL FEATURES

Direct thread attachment option

CB series muzzle brake and flash hider attachment option

Ionbond DLC coating on CB muzzle devices

Conical shoulder surface on CB mount

100% titanium construction

360-degree fully-welded baffle core

Helical Baffle Technology

Magnum rated

Rock-Solid POI Repeatability

APPLICATION NOTES

Minimum barrel lengths2:
   .300 Blackout: 8"
   6.8 SPC, 7.62x39: 10"
   .308 Win: 14.5"
   7mm RM, .300 WIN MAG: 18"
   7mm RUM, .300 RUM: 20"
Please contact tech support for:
   7mm cal loads exceeding 90 grains,
   .30 cal loads exceeding 100 grains
For questions about a particular rifle/load combination please contact us.
